Nonwoven Mesh Belt

Name: "Nonwoven Mesh Belt"
Rating: 5 (223 reviews)

SKU: 9928273448

Model: K4106A

Product Details

Product Specification

Type	Anti-static Mesh Belt	Model	K4106A
Params	Model: K4106A Material: Anti-static PET flat Weave Structure: Above-3 Below-5 Warp: 0.50mm Red, 0.52mm Conductive Weft: White 0.60mm PET Air Permeability: 600±30CFM（127Pa/20cm²） Layers: 1.5 Layers Thickness: 1.88mm GSM: 990g/m² Joint Type: Self-ring / Millet-ring Glue Edge: 2cm glue brushing on welding edges at both sides Package: Wooden carton / Sack package Dimension Error: Length: <50m, ±5cm Width: <5m, ±1cm Properties: 106-107 Ω Conductivity value Durable, long lifetime High cost-effective	Material	Polyester
Applicable Industry	Nonwoven Manufacturing

Feature

Model K4106A: Core Selling Points 1. Internationally Advanced Anti-Static Performance Utilizes internationally advanced anti-static PET filaments, delivering a stable conductivity value of 106-107 Ω across the entire belt surface. Effectively eliminates static electricity issues that cause fiber sticking and poor peeling on low-GSM fabrics. 2. Superior Peeling & Release Properties The belt surface is flat and smooth with excellent non-stick characteristics, ensuring fabrics are easily peeled off without floating or clinging—critical for high-speed production lines. 3. Advanced Seam Technology Precision joint craftsmanship creates a surface that is flat and uniform, significantly reducing the risk of fiber snagging and roller jumping during operation. 4. Wear-Resistant & Long-Lasting Built with high-quality materials for exceptional durability and an extended service life, minimizing downtime and replacement costs. 5. High Cost-Performance (Premium at a Practical Price) Delivers premium-grade anti-static performance comparable to imported belts, but at a highly competitive price point—making it the smart, cost-effective choice for manufacturers.

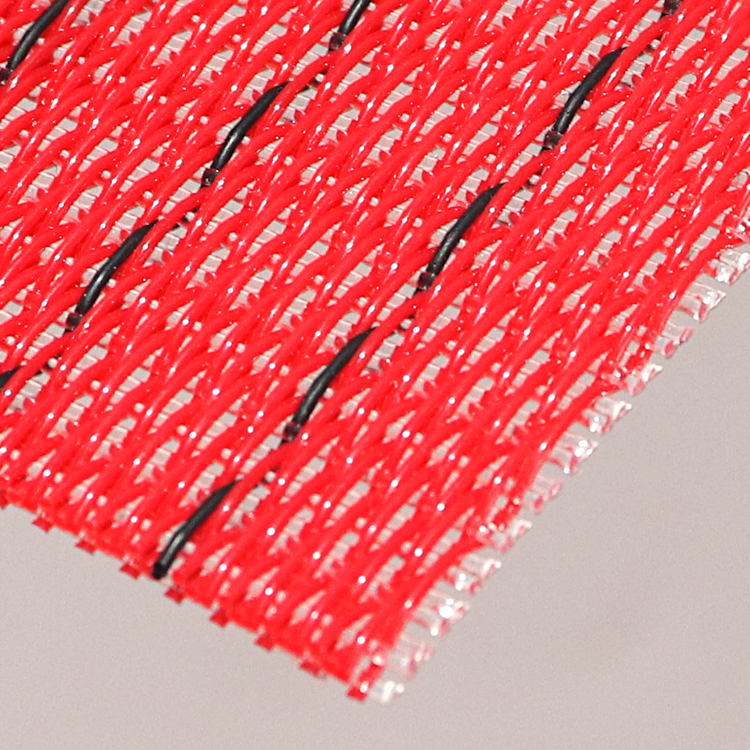

Antistatic Non‑woven Mesh Belt
